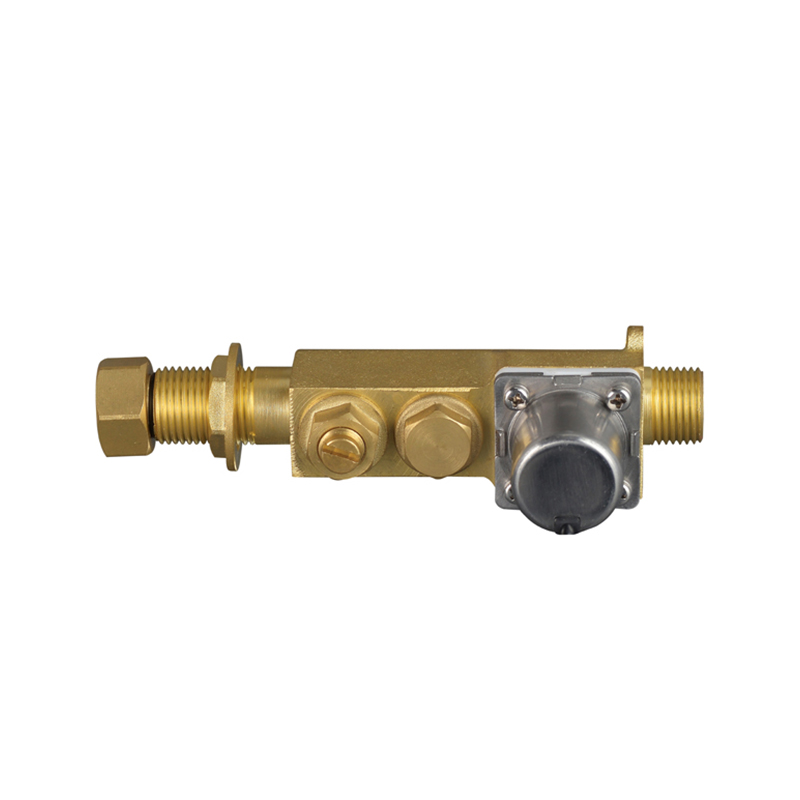

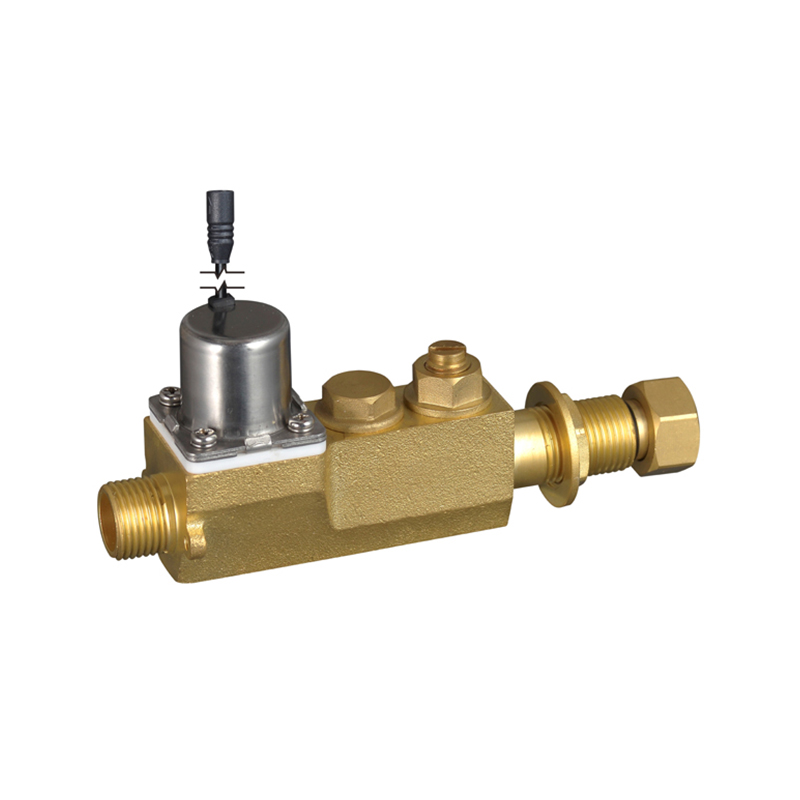

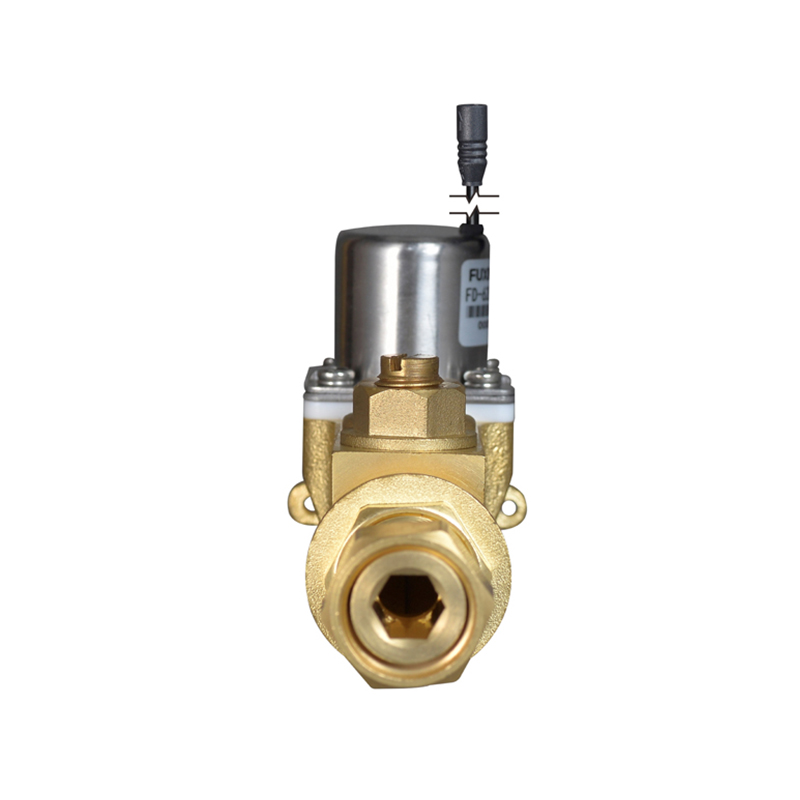

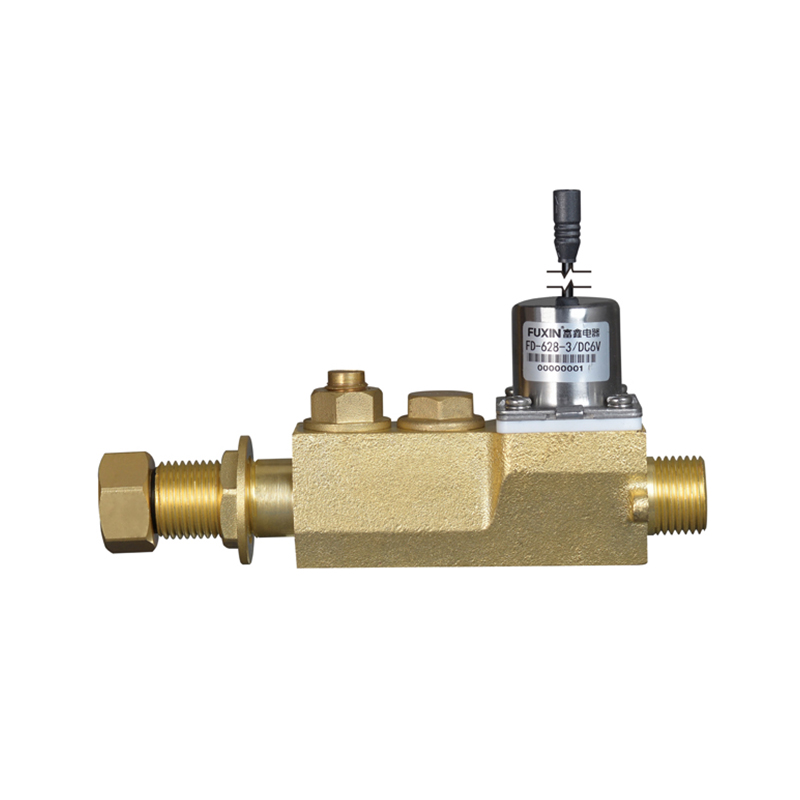

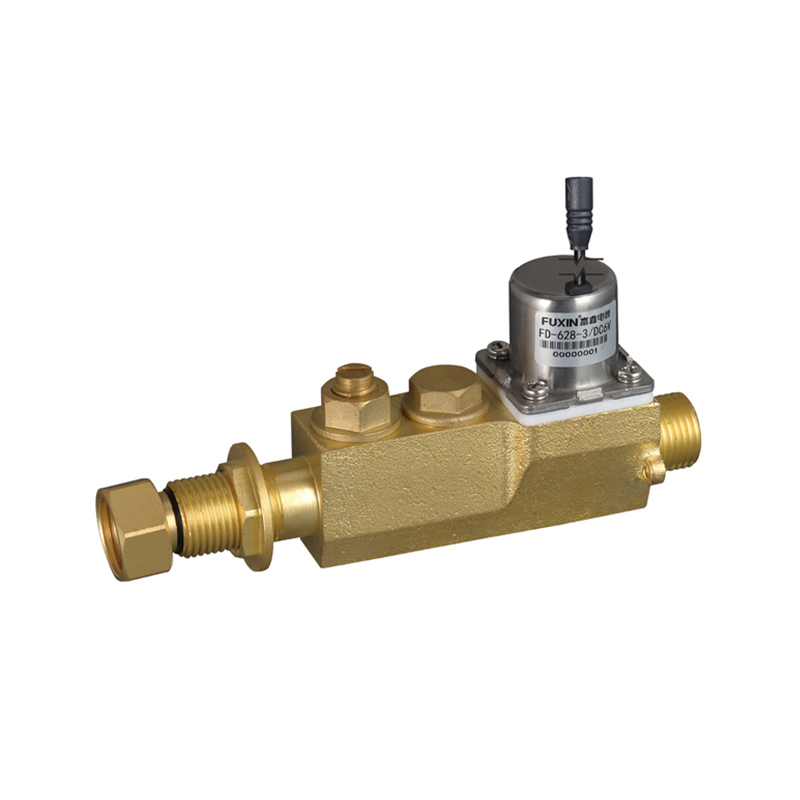

Battery Operated Sensor Urinal Flush Solenoid Valve

The main body is made of H58 brass, formed by hot forging and then precision machined through CNC machining centers. It integrates functions such as water shutoff, flow control, filter cleaning, and achieves waterproof rating up to IP67. It maintains a flow rate of 30L/min under a continuous pressure of 0.6Mpa, with the solenoid valve capable of withstanding pressures up to 3.5Mpa.


The Battery Operated Sensor Urinal Flush Solenoid Valve is designed for use in sensor-controlled sanitary systems. The solenoid valve can operate using both pulse signals and continuous modes. The pulse valve features an ly long lifespan of up to 1.2 million cycles, low power consumption requiring only 25 milliseconds of pulse width operation, and high waterproof rating of IP67. It also boasts self-cleaning functionality and strong impurity resistance. The solenoid valve is directly fixed with rubber into ceramic holes, simplifying wall installation engineering and making it convenient and easy to install. The concealed installation method significantly reduces installation difficulties. The integrated design of flow adjustment and filtration device greatly enhances product longevity.

Inquiry Zhejiang Fuxin Electrical Technology Co., Ltd.
  • Description
  • Parameter List

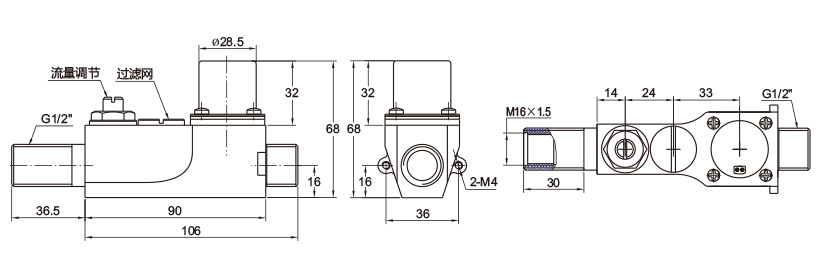

  • Outline Drawing
  • Accessories
  • Ordering Instructions

Product Introduction

Our Battery Operated Sensor Urinal Flush Solenoid Valve, is a advanced solution designed to enhance the efficiency and hygiene of urinal systems.

Key Features:

Loose Joint: Our solenoid valve is engineered with a Loose Joint mechanism, allowing for easy installation and maintenance. This feature streamlines the setup process and facilitates quick repairs, reducing downtime and operational disruptions.

Water Filter: The inclusion of a Water Filter ensures that the water used for flushing remains clean and free from impurities. By effectively filtering out debris and contaminants, our solenoid valve promotes hygiene and helps prevent clogs, ensuring consistent and reliable flushing performance.

Water Flow Regulator: Our solenoid valve is equipped with a Water Flow Regulator that optimizes water usage during the flushing process. This feature helps conserve water resources by controlling the flow rate, promoting sustainability and environmental responsibility without compromising flushing effectiveness.

Water Conservation: The Water Flow Regulator feature ensures efficient water usage, helping conserve water resources and reduce utility costs for facilities while maintaining effective flushing performance.

Reliability: Engineered with quality materials and advanced technology, our solenoid valve delivers reliable and consistent performance, reducing the likelihood of malfunctions or breakdowns and ensuring uninterrupted restroom operation.

Convenience: The sensor-based operation eliminates the need for manual flushing, enhancing user convenience and accessibility, particularly for individuals with mobility issues or disabilities.

Our Battery Operated Sensor Urinal Flush Solenoid Valve represents a advancement in restroom technology, offering convenience, hygiene, and efficiency. With its innovative features, durable construction, and reliable performance, this solenoid valve is the ideal choice for modern facilities seeking to optimize their restroom operations and enhance the overall user experience.
